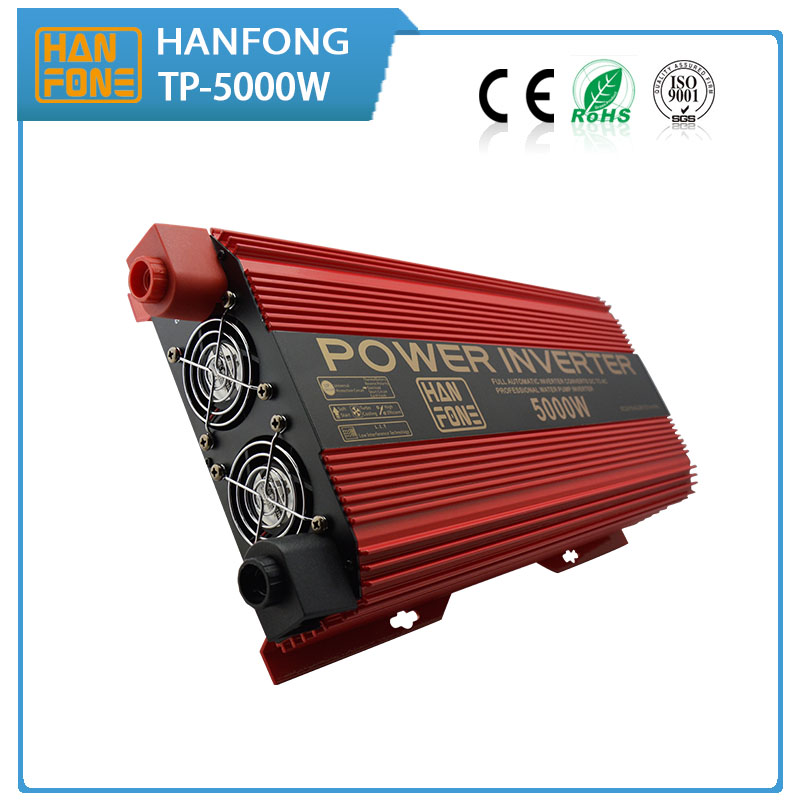

Hanfong TP5000W Power Inverter
This power inverter is modified sine wave inverter which converts DC power to AC power.
Features:
●Stable output constant voltage inverter: whether the battery voltage is too low or too high, the inverter output voltage can keep in the range of 10%, until the inverter cuts off then stop working and give the alarm prompt;
●Full load steady not more than 50 degrees: inverter with load, the fuselage keep no more than 50 °, prolong the service life of machine;
●Isolating circuit, high Impact resistance: at start-up inductive load current is 3-4 times of resistance load, great impact on the inverter, and TP series have the stability of the circuit design and super protective CPU control, when load short circuit, or leakage to stop working immediately, avoid burning machine;
●Grounding line protection device: the inverter with grounding device, to improve the security of use;
●Low interference: avoid the use of high-end precision instruments produced when with interference phenomenon;
●Temperature control fan without noise, in full load when the environment temperature is not more than 26 ℃, fan doesn't start, no noise no fever and normal use.
Applications:
Camera, fan, hair dryer, electric light, electric kettle, electric shaver, TV set, CD player, mobile phone, notebook, portable device, in-vehicle and etc.
Input | Input Voltage |
| |
Working Voltage | DC 9.5V-15.5V | ||
Input Current | 166.7A | ||
Conversion Efficiency | ≥80% | ||
Output | Continuous Output Power | 2000W | |
Peak Power | 4000W | ||
Output Voltage | AC 220V | ||
Output Frequency | 50Hz-60Hz | ||
Output Current | 9.1A | ||
Output Waveform | Modified Sine Wave | ||
Environment | Temperature Protection | ≥50℃ | |
operating Temperature | 0℃～40℃ | ||
Cooling Way | Temperature-controlled fan | ||
Protection | With Buzzer Warning | Yes | |
Fuse | 240A | ||
Low Voltage Shutdown | 10±1V | ||
Over Voltage Shutdown | 15±1V | ||
Fault Indicator Light | Under/over voltage: LED red light on, automatic recovery | ||
Overload: LED red light on, automatic recovery | |||
Over temperature: LED red light on, manual recovery | |||
Short circuit: LED red light on, manual recovery | |||
Input polarity reverse: fuse burn-out | |||
Other | Net Weight | 3.78KG | |
Gross Weight | 4.59KG | ||
Inverter Size | (Length*width*height)332*226*90mm | ||
Packing Size | (Length*width*height)385*264*122mm | ||
Carton Size | (Length*width*height)530*390*285mm | ||
Application | Mobile, on-board electronics, camera, lamp, electric shaver, CD, tablet computer, TV, fan, energy saving bulb... |
