We supply Solar Power Inverters, Solar controller for Home & business with high quality and competitive price. Hope to cooperate with you!
9 Years
| Ask Lasest Price | |
| Brand Name : | HANFONG |
| Model Number : | XY2A300 |
| Certification : | CE |
| Price : | US $10 - 20 / Piece |
| Payment Terms : | L/C, D/A, D/P, Western Union, MoneyGram, T/T |
| Supply Ability : | 100000 Piece/Pieces per Month |
| Delivery Time : | 7 work days |

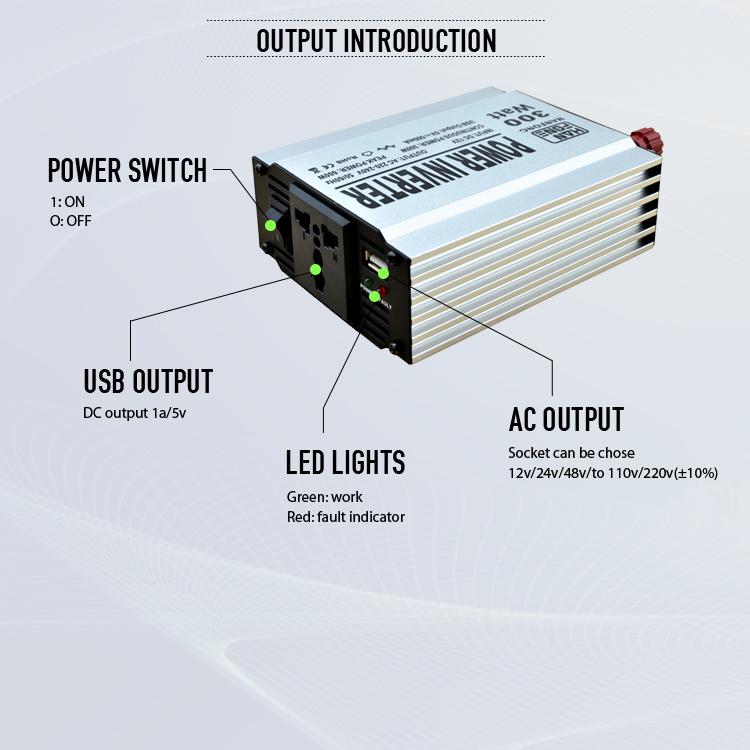

XY2A Series Power Inverter
This power inverter is modified sine wave inverter which converts DC power to AC power.
Features:
●Grounding line protection device: the inverter with grounding device, to improve the security of use;
●Low interference: avoid the use of high-end precision instruments produced when with interference phenomenon;
●Temperature control fan without noise, in full load when the environment temperature is not more than 26 ℃, fan doesn't start, no noise no fever and normal use;
●Isolated output;
●External fuses;
●USB charging port +5VDC, 500mA;
●Battery low voltage alarm;
●Cool surface design;
●Cooling fins and load controlled fan;
●Low interference technology;
●Protection including: Low /over voltage, over load, short circuit, high temperature.
Applications:
Camera, fan, hair dryer, electric light, electric kettle, electric shaver, TV set, CD player, mobile phone, notebook, portable device, in-vehicle and etc.
Specifications:
| Model | XY2A300 | XY2B300 | XY2C300 | |
| Input Voltage | DC 12V | DC 24V | DC 48V | |
| Working Voltage | DC 9.5V-15.5V | DC 20-30V | DC 40-60V | |
| Input Current | 25A | 12.5A | 6.3A | |
| Conversion Efficiency | >90% | |||
| Continuous Power | 300W | |||
| Peak Power | 600W | |||
| Output Voltage | AC110-120V/220-240V | |||
| Output Frequency | 50Hz-60Hz±2Hz | |||
| Output Current | 2.7A/1.4A | |||
| Wave Form | Modified Sine Wave | |||
| Thermal Protection | ≥70℃ | |||
| Operating Temperature | 0℃～40℃ | |||
| Cooling | By Intelligent Fan | |||
| Under Voltage | 10±1V | 20±1V | 40±1V | |
| Over Voltage | 15±1V | 30±1V | 60±1V | |
| Protections | Undervoltage: LED red light, buzzer alarm, restart recovery | |||
| Overvoltage: LED red light, restart recovery | ||||
| Overload,high temperature: LED red light, restart recovery | ||||
| Net Weight | 540g | |||
| Gross Weight | 740g | |||
| Size | 160*105*49mm | |||
| Box size | 245*220*120mm | |||

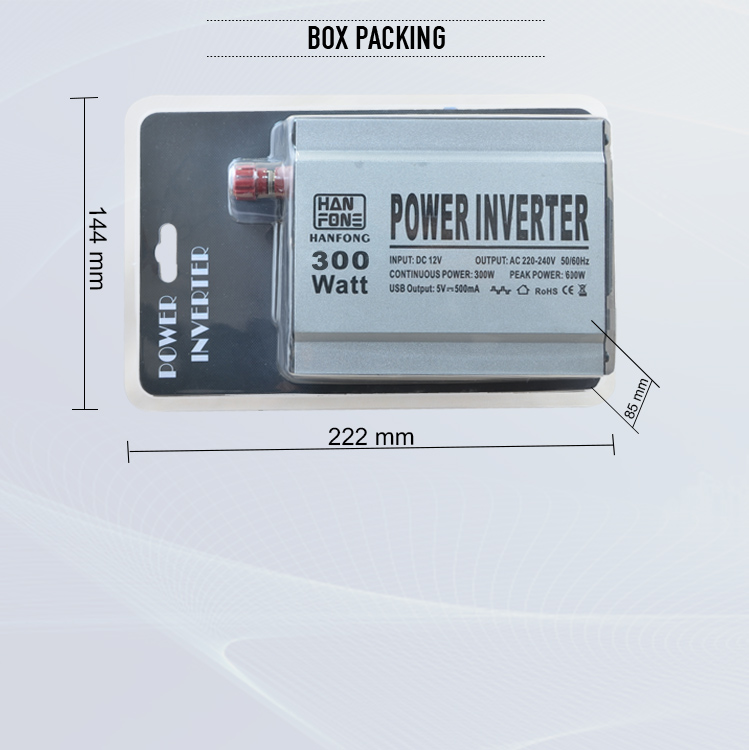

| Carton | 500*420*320mm 24Pieces/Carton | |||
We supply Power Inverter,Solar charge controller for Home&Business with high quality and competitive price.
As a Professional Manufacturers , OEM and ODM orders are welcomed. We can produce your styles with a reasonable price,and good quality
can be promised. Before production, we can make a sample and send
to you to test the quality. Professional service and experienced
workers in our factory!
Hope to cooperate with you!
