| Brand Name : | Hanfong,Winiversal |
| Model Number : | THA150 |
| Certification : | CE,ROHS,ISO,TUV |
| Delivery Time : | 7 work days |
| Payment Terms : | L/C, D/A, D/P, Western Union, MoneyGram, T/T |
| Supply Ability : | 10000 Piece/Pieces per Month |
| Price : | $10/pcs |

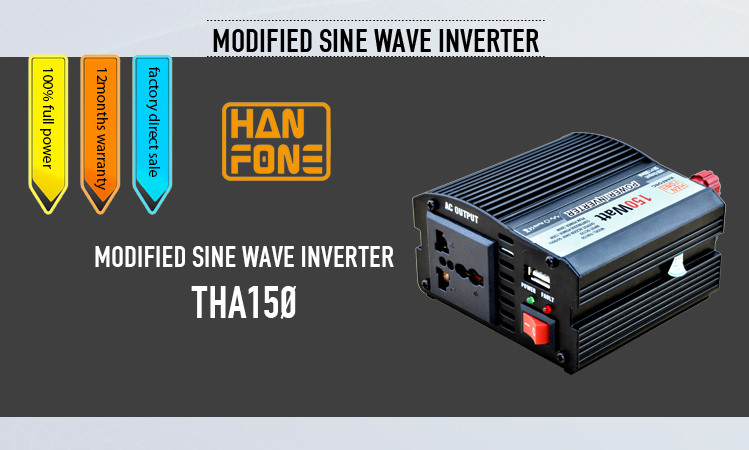

THA Series Power Inverter
This power inverter is modified sine wave inverter which converts DC power to AC power. Full power inverter with strong protections. Its output voltage is always within 10% of rated voltage until it shutdown for overload or other reasons.
Features:
●Protections: low-voltage, over voltage, over load, over temperature.
●Isolated circuit, strong impact resistance, constant voltage and stable output, low-interference.
●Advanced automatic constant circuit, prolong battery life.
●Perfect protection against battery under voltage, overload, short-circuit.
●Microprocessor control guarantees high reliability.
●Can work with inductive load such as air conditioner, motor door and so on.
●The special design of circuit and tough components protect the power inverter from being easily damaged, even when the starting power of that equipment is more than 3 times of that of the inverter.
●Having grounding devices to improve safety and excellent component to lower interference; inner fan is intelligent and will not work until the wattage reaches 1/3 of inverter.
●With 100% full power, efficiency reaching up to 85%.
●Isolated output.
●Soft start.
●USB charging port +5VDC, 500mA.
Applications:
Camera, fan, hair dryer, electric light, electric kettle, electric shaver, TV set, CD player, mobile phone, notebook, portable device, in-vehicle and etc.
Specifications:
| Model | THA150 | THB150 | THC150 | |
| Input Voltage | DC 12V | DC 24V | DC 48V | |
| Working Voltage | DC 9.5V-15.5V | DC 20-30V | DC 40-60V | |
| Input Current | 12.5A | 6.3A | 3.2A | |
| Conversion Efficiency | >85% | |||
| Continuous Power | 150W | |||
| Peak Power | 300W | |||
| Output Voltage | AC 100V-120V/210-240V | |||
| Output Current | 1.3A/0.68A | |||
| Output Frequency | 50Hz-60Hz | |||
| Wave Form | Modified Sine Wave | |||
| USB Output Voltage | DC 5V(800mA) | |||
| Thermal Protection | ≥70℃ | |||
| Operating Temperature | 0℃～40℃ | |||
| Cooling | By Intelligent Fan | |||
| Under Voltage | 10±1V | 20±1 | 40±1 | |
| Over Voltage | 15±1V | 30±1 | 60±1 | |
| Protections | Undervoltage: LED red light, buzzer alarm, restart recovery | |||
| Overvoltage: LED red light, restart recovery | ||||
| Overload,high temperature: LED red light, restart recovery | ||||
| Reverse connect: Blown fuse | ||||
| Net Weight | 487g | |||
| Gross Weight | 628g | |||
| Size | 125*102*58 mm | |||
| Carton | 530*310*480 mm 40Pieces/Carton | |||
