We supply Solar Power Inverters, Solar controller for Home & business with high quality and competitive price. Hope to cooperate with you!
9 Years
| Ask Lasest Price | |
| Brand Name : | Hanfong,Winiversal |
| Model Number : | THA4000 |
| Certification : | CE,ROHS,ISO,TUV |
| Delivery Time : | 7 work days |
| Payment Terms : | L/C, D/A, D/P, Western Union, MoneyGram, T/T |
| Supply Ability : | 100000 Piece/Pieces per Month |

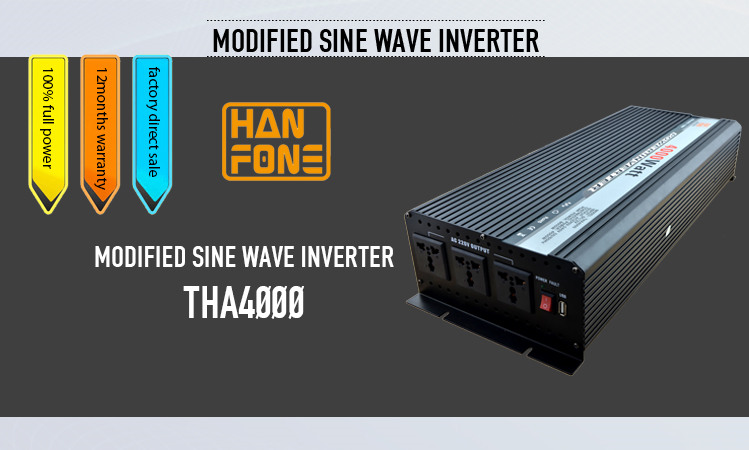

THA4000W Power Inverter is modified sine wave inverter which converts DC power to AC power. Full power inverter with strong protections. Its output voltage is always within 10% of rated voltage until it shutdown for overload or other reasons
THA4000W Power Inverter Features:
●Protections: low-voltage, over voltage, over load, over temperature.
●Isolated circuit, strong impact resistance, constant voltage and stable output, low-interference.
●Advanced automatic constant circuit, prolong battery life.
●Perfect protection against battery under voltage, overload, short-circuit.
●Microprocessor control guarantees high reliability.
●Can work with inductive load such as air conditioner, motor door and so on.
●The special design of circuit and tough components protect the power inverter from being easily damaged, even when the starting power of that equipment is more than 3 times of that of the inverter.
●Having grounding devices to improve safety and excellent component to lower interference; inner fan is intelligent and will not work until the wattage reaches 1/3 of inverter.
●With 100% full power, efficiency reaching up to 85%.
●Isolated output.
●Soft start.
●USB charging port +5VDC, 500mA.
THA4000W Power Inverter Applications:
Camera, fan, hair dryer, electric light, electric kettle, electric shaver, TV set, CD player, mobile phone, notebook, portable device, in-vehicle and etc.
THA4000W Power Inverter Specifications:
| Model | THA4000 | THB4000 | THC4000 |
| Input Voltage | DC 12V | DC 24V | DC 48V |
| Working Voltage | DC 9.5V-15.5V | DC 20-30V | DC 40-60V |
| Input Current | 333A | 166A | 183A |
| Conversion Efficiency | >85% | ||
| Continuous Power | 4000W | ||
| Peak Power | 8000W | ||
| Output Voltage | AC 100V-120V/210-240V | ||
| Output Current | 36A/18A | ||
| Output Frequency | 50Hz-60Hz | ||
| Wave Form | Modified Sine Wave | ||
| USB Output Voltage | DC 5V(800mA) | ||
| Thermal Protection | ≥70℃ | ||
| Operating Temperature | 0℃～40℃ | ||
| Cooling | By Intelligent Fan | ||
| Under Voltage | 10±1V | 20±1 | 40±1 |
| Over Voltage | 15±1V | 30±1 | 60±1 |
| Protections | Undervoltage: LED red light, buzzer alarm, restart recovery | ||
| Overvoltage: LED red light, restart recovery | |||
| Overload,high temperature: LED red light, restart recovery | |||
| Reverse connect: Blown fuse | |||
| Net Weight | 7500g | ||
| Gross Weight | 8000g | ||
| Size | 480*200*100mm | ||
| Carton | 610*545*335mm 4Pieces/Carton | ||
We supply Power Inverter,Solar charge controller for Home&Business with high quality and competitive price.
As a Professional Manufacturers , OEM and ODM orders are welcomed. We can produce your styles with a reasonable price,and good quality
can be promised. Before production, we can make a sample and send
to you to test the quality. Professional service and experienced
workers in our factory!
Hope to cooperate with you!
