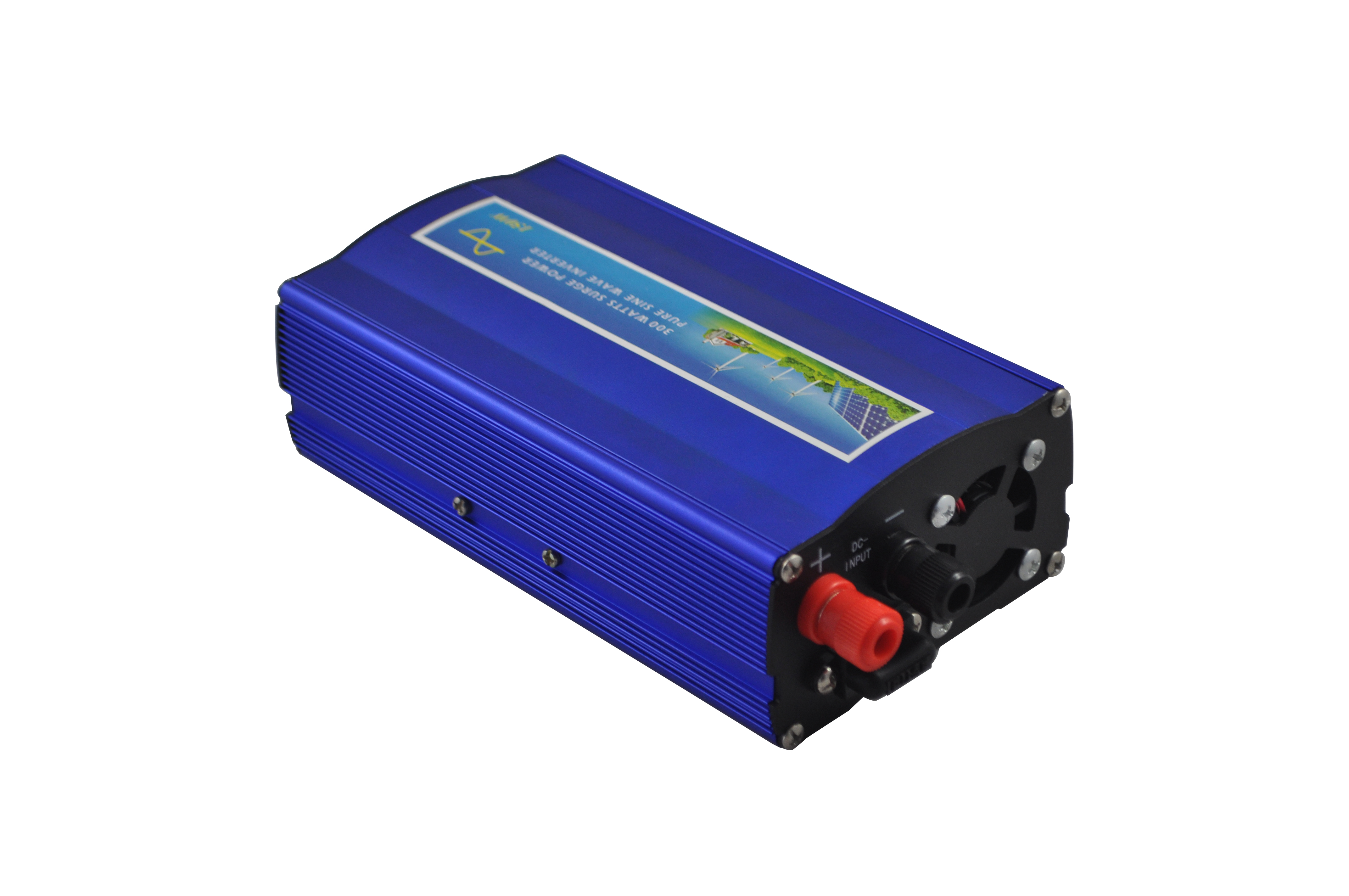

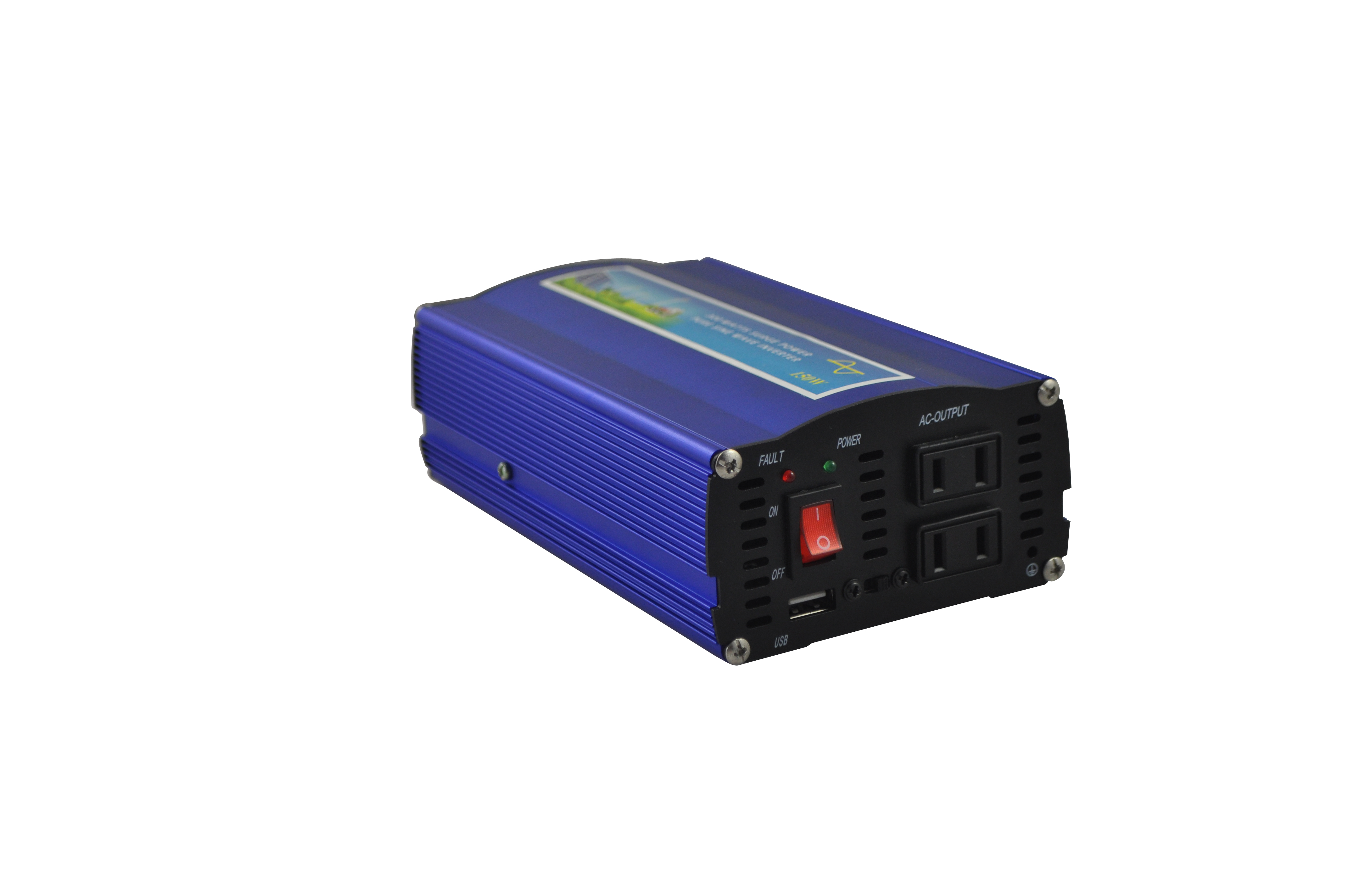

This is a 12 volt DC to 220 volt AC power inverter with 150 watts
continuous power handling and 300 Watts peak power. Pure Sine Wave
(also known as True Sine Wave) inverters generate an output voltage
wave form that has a very low harmonic distortion like
utility-supplied electricity. This means they are more suited for
sensitive electronic equipment, allowing motors to run faster,
quieter and cooler, preventing computer crashes, noises & glitches
in monitors, TV, Game consoles etc in short a Pure Sine Wave
Inverter will provide a reliable power source for all electronic
appliances & devices.
Protection:
.Buzzer alarm
.Soft start
.Reverse polarity
.Grounding protection
.Over-load protection
.Low-voltage protection
.Over-voltage protection
.Short-circuit protection
.Over-temperature protection
.Auto reset after being in protection
Product Features:
1. The safety of shock
2. The original constant power technology
3. Battery over-discharge alarm protection
4. Before and after class isolation technology
5. CPU core SPWM pulse width control technology
6. Doesn't affect the working life of electrical equipment
7. The installation of the MOS transistor anti-reverse technology
8. The original level of before and after the double soft-start
technology
9. Components with high-quality original, ensure products with high
quality.
10. With small, light weight, high efficiency, low distortion,
no-polluting, low noise, aluminum alloy shell, surface blasting
anodic oxidation treatment, high hardness, beautiful appearance
Applicable for:
--Solar electric energy generation;
--Wind power generation;
--Communication equipment;
--Industrial intellectual control system;
--Small sized emergency power supply system;
--Travel set equipment, industrial equipment, office equipment,
kitchen equipment, household electrical equipment, power tools and
so on;
Pure Sine Wave Inverters 150 Watt | |||
Input | DC voltage | 12V or 24V or 48V or 110V | |
Voltage range | 10-16VDC or 20-33VDC or 40-63VDC or 90-135VDC | ||
No load current draw | < 0.6A | < 0.7A | |
Efficiency | > 88% | ||
DC connection | Cables With Clips or Car Adaptor | ||
Output | AC voltage | 100/110/120VAC or 220/230/240 VAC | |
Continuous power | 150W | ||
Surge power | 300W | ||
Waveform | Pure sine wave | ||
Frequency | 50Hz or 60Hz | ||
AC regulation | 3% | ||
Protection | Low voltage alarm | 10.5DC±0.5V or 21DC±1V or 42VDC±1V or 95VDC±3V | |
Low voltage shut down | 10DC±0.5V or 20DC±1V or 40VDC±1V or 90VDC±3V | ||
Short circuit | Shut off output automatically | ||
Over load | Shut off output | ||
Over voltage shut down | 16V or 33V or 63V or 135V | ||
Over thermal | Shut off output automatically | ||
Environment | Working temperature | between -10℃ and +50℃ | |
Working humidity | 20%～90%RH | ||
Storage temperature | between -30℃ and +70℃ | ||
Package | Machine size(cm) | 18*10.5*6 | |
Packing size(cm) | 27.5*16*11.3 | ||
Net weight(kg) | 0.86 | ||
Gross weight(kg) | 1.13 | ||
Packing mode | Carton packaging | ||
Other | Start | Soft start | |
Cooling ways | Intelligent cooling fan | ||
