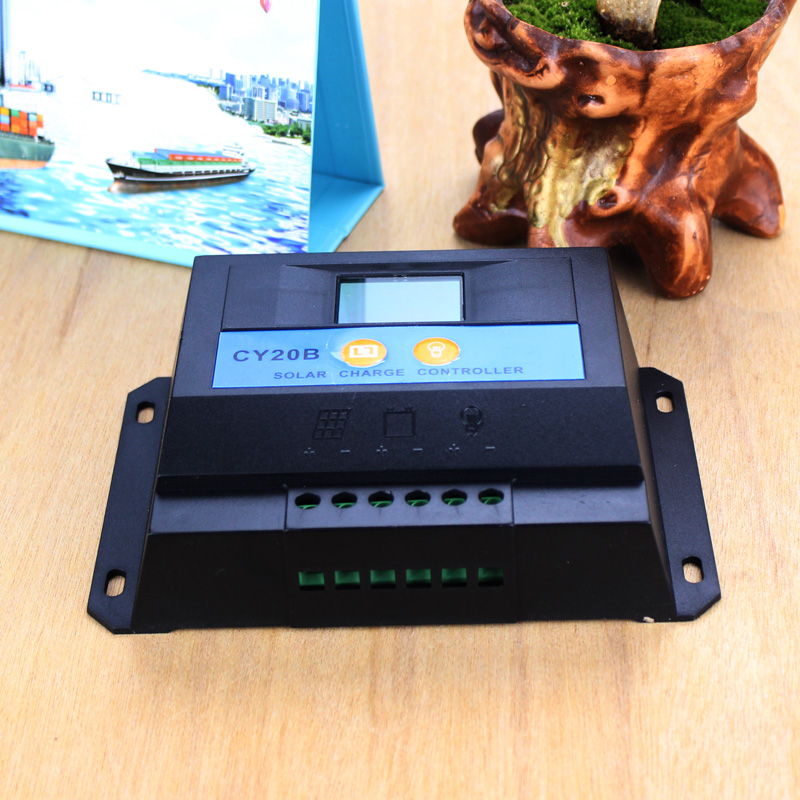

Hanfong LCD/LED high quality pwm solar charge controller/regulator 10a 12/24v with CE ROHS

GuangZhou HanFong New Energy Technology Co., Ltd.
Contact Now
    Buy cheap Hanfong LCD/LED high quality pwm solar charge controller/regulator 10a 12/24v with CE ROHS from wholesalers

    Buy cheap Hanfong LCD/LED high quality pwm solar charge controller/regulator 10a 12/24v with CE ROHS from wholesalers
    • Buy cheap Hanfong LCD/LED high quality pwm solar charge controller/regulator 10a 12/24v with CE ROHS from wholesalers
    • Buy cheap Hanfong LCD/LED high quality pwm solar charge controller/regulator 10a 12/24v with CE ROHS from wholesalers

    Hanfong LCD/LED high quality pwm solar charge controller/regulator 10a 12/24v with CE ROHS

    Ask Lasest Price
    Brand Name : Hanfong,Winiversal
    Certification : CE,ROHS,ISO,TUV
    Model Number : CY20B
    Delivery Time : 7 work days
    Payment Terms : L/C, D/A, D/P, Western Union, MoneyGram, T/T
    Supply Ability : 100000 Piece/Pieces per Month
    • Product Details
    • Company Profile

    Hanfong LCD/LED high quality pwm solar charge controller/regulator 10a 12/24v with CE ROHS

    This item is a simply solar energy overcharge and over discharge protection controller, which is especially designed for the area with great sunlight. And, this controller is perfectly suitable for the 12V/24V control system .

    Specification:

    1.Household type.Very simple operation

    2.Intuitive battery status indication

    3.Long serving life as 2-3years

    4.New upgrated version which is used UEIUA version Optimized design scheme .so that the solar charge controller can protect the battery to prolong the serving life


    Features:

    • 100% Brand New and High Quality
    • With compact portable design
    • Over-load protection
    • Short circuit protection and Protect from the lighting strike
    • Reserve discharging protection and Reserve-polarity protection
    • Under-voltage protection
    • Overcharging protection

    Technical datasheet

    MODEL

    CY20B

    Batt voltage

    12V/24V auto

    48V

    Charge current

    10A

    20A

    30A

    20A

    30A

    Discharge current

    10A

    20A

    30A

    20A

    30A

    Max Solar input

    <50V

    <80V

    Equalization

    B01 sealed

    B02 Gel

    B03 flood

    14.4V

    14.2V

    14.6V

    Float charge

    13.7V(defaul,adjustable)

    Discharge stop

    10.7V(defaul,adjustable)

    Discharge reconnect

    12.6V(defaul,adjustable)

    USB output

    5V/3A

    Self-consume

    <10mA

    Operating temperature

    -35~+60 ℃

    Size/Weight

    170*110*50mm /250g

    We supply Inverters,Solar lights, Solar charge controller & Solar generator for Home&Business with high quality and competitive price.
    As a Professional Manufacturers , OEM and ODM orders are welcomed. We can produce your styles with a reasonable price,and good quality can be promised. Before production, we can make a sample and send to you to test the quality. Professional service and experienced workers in our factory!


    Hope to cooperate with you!


    GuangZhou HanFong New Energy Technology Co., Ltd.
    Leo Au-Yeung | Market Manager
    E-mail:info@inverters.cc
    Cellphone/Facebook/WhatsApp/WeChat: +86 18665058012

    Website:www.inverters.cc
