We supply Solar Power Inverters, Solar controller for Home & business with high quality and competitive price. Hope to cooperate with you!
9 Years
| Ask Lasest Price | |
| Brand Name : | Hanfong |
| Model Number : | XA-300 |
| Certification : | CE ROSH ISO |
| Price : | $14.5/pcs |
| Payment Terms : | Western Union, T/T |
| Supply Ability : | 20000pcs/month |
| Delivery Time : | 25 working day |

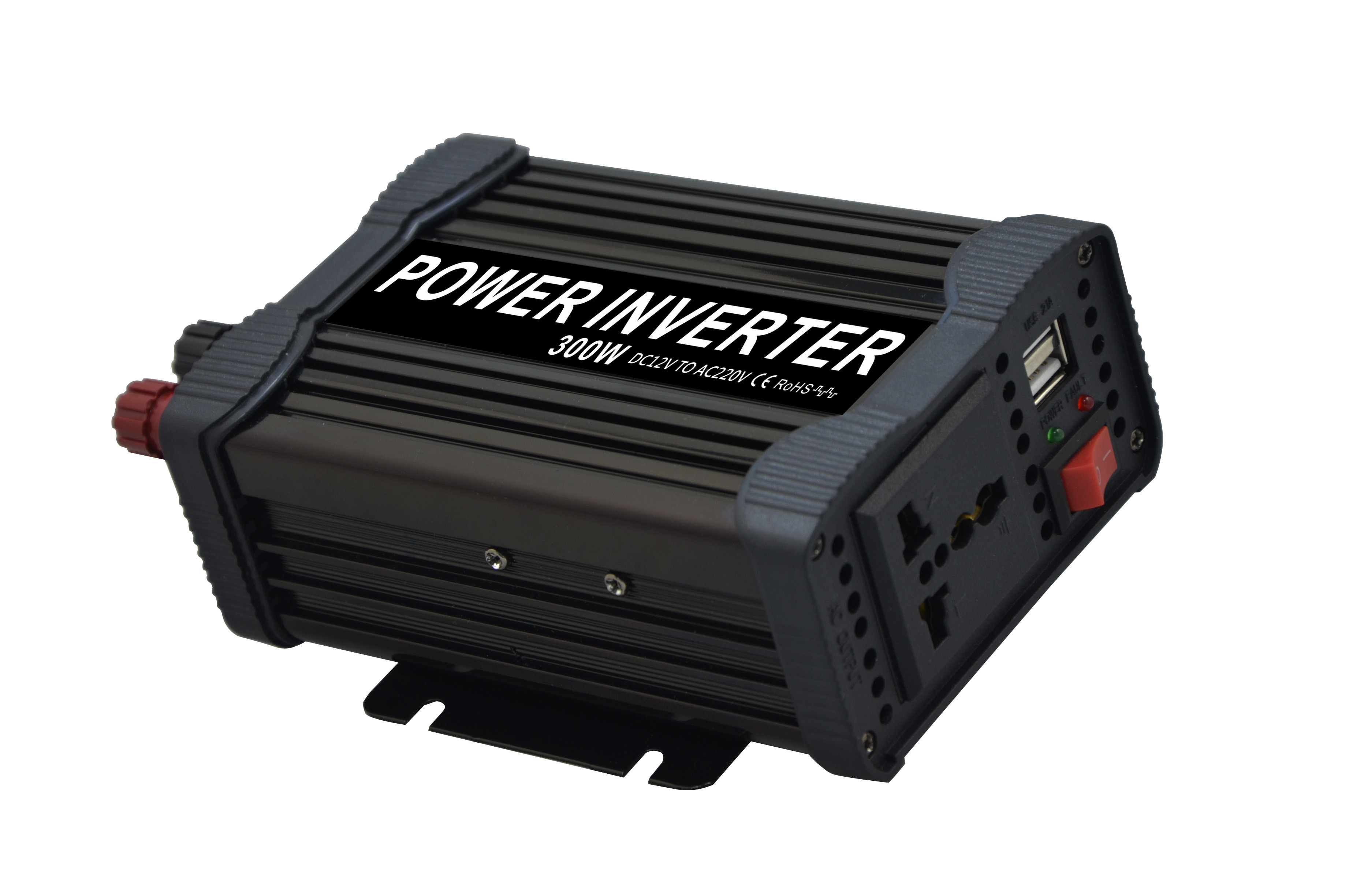

XA Series Power Inverter
This power inverter is modified sine wave inverter which converts
DC power to AC power. Full power inverter with strong protections.
Its output voltage is always within 10% of rated voltage until it
shutdown for overload or other reasons.
1.Efficiency up to 90%, super surge capacity to start difficult
load
2.Strong adaptable and stable load
3.External fuse,easy to replace,restart safely
4.Smart chip, MCU single chip control
5.Five types of buzzing,easy to estimate which protection the
inverter belong to
6.Temperature control fan,Dual USB2.1A
7.Soft start output, can protect the appliance
8.Able to load energy-saving lamp
| Model | XA300 | XB300 | XC300 | ||
| Input Voltage | DC 12V | DC 24V | DC 48V | ||
| Working Voltage | DC 9.5V-15.5V | DC 20-30V | DC 40-60V | ||
| Input Current | 25A | 12.5A | 6.3A | ||
| Conversion Efficiency | >85% | ||||
| Continuous Power | 300W | ||||
| Peak Power | 600W | ||||
| Output Voltage | AC 100V-120V/210-240V | ||||
| Output Current | 2.7A/1.3A | ||||
| Output Frequency | 50Hz-60Hz | ||||
| Wave Form | Modified Sine Wave | ||||
| USB Output Voltage | DC 5V(800mA) | ||||
| Thermal Protection | ≥70℃ | ||||
| Operating Temperature | 0℃～40℃ | ||||
| Cooling | By Intelligent Fan | ||||
| Under Voltage | 10±1V | 20±1 | 40±1 | ||
| Over Voltage | 15±1V | 30±1 | 60±1 | ||
| Protections | Undervoltage: LED red light, buzzer alarm, restart recovery | ||||
| Overvoltage: LED red light, restart recovery | |||||
| Overload,high temperature: LED red light, restart recovery | |||||
| Reverse connect: Blown fuse | |||||
| Net Weight | 700g | ||||
| Gross Weight | 900g | ||||
| Size | 185*102*58mm | ||||
| Carton | 535*435*310mm 20Pieces/Carton | ||||

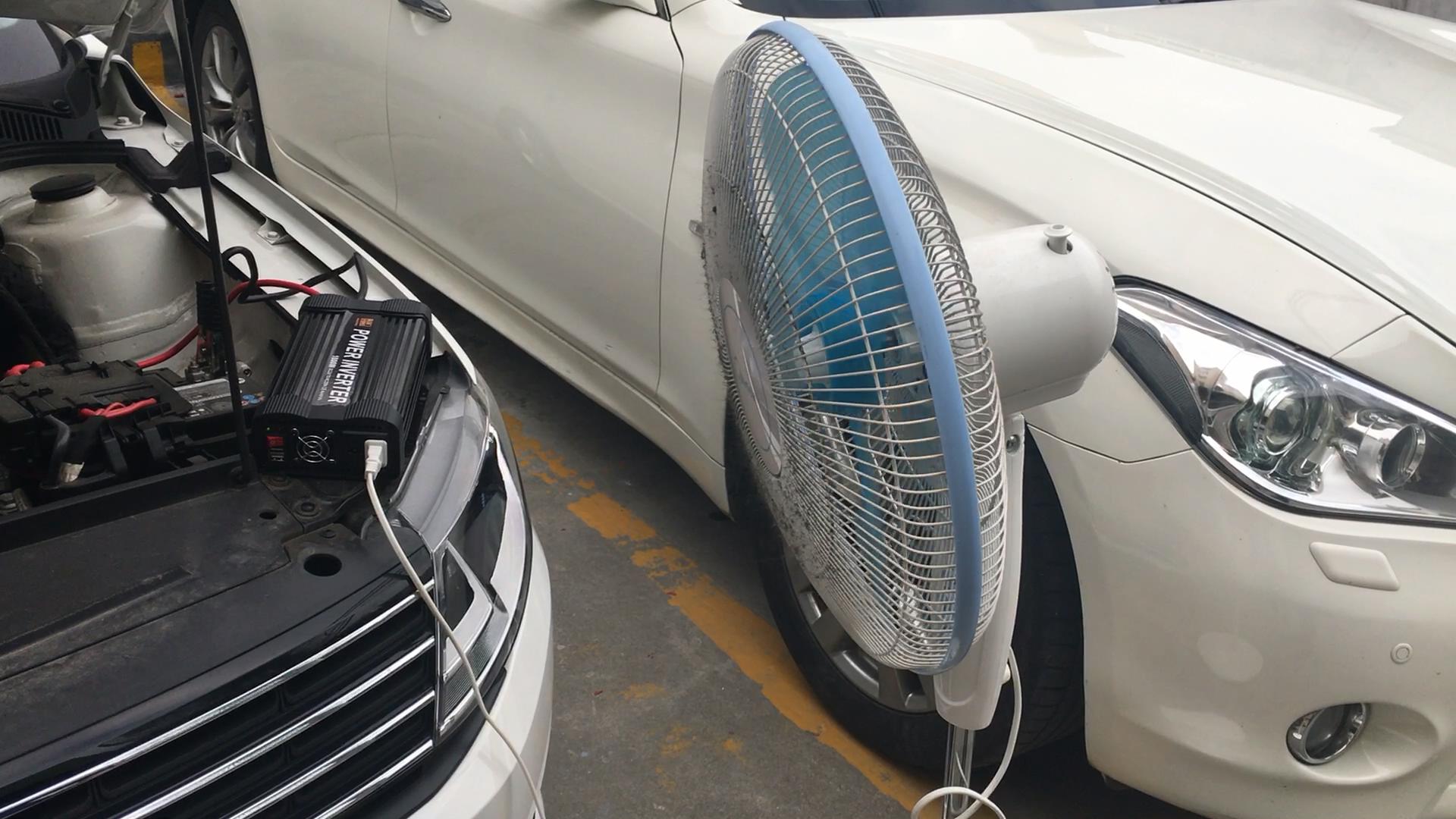

Applications:
Camera, fan, hair dryer, electric light, electric kettle, electric
shaver, TV set, CD player, mobile phone, notebook, portable device,
in-vehicle and etc.
Specifications:
|
|
