We supply Solar Power Inverters, Solar controller for Home & business with high quality and competitive price. Hope to cooperate with you!
9 Years
| Ask Lasest Price | |
| Brand Name : | Hanfong |
| Model Number : | XA-500 |
| Certification : | CE ROSH ISO |
| Price : | $17.58/pcs |
| Payment Terms : | Western Union, T/T |
| Supply Ability : | 20000pcs/month |
| Delivery Time : | 25 working day |

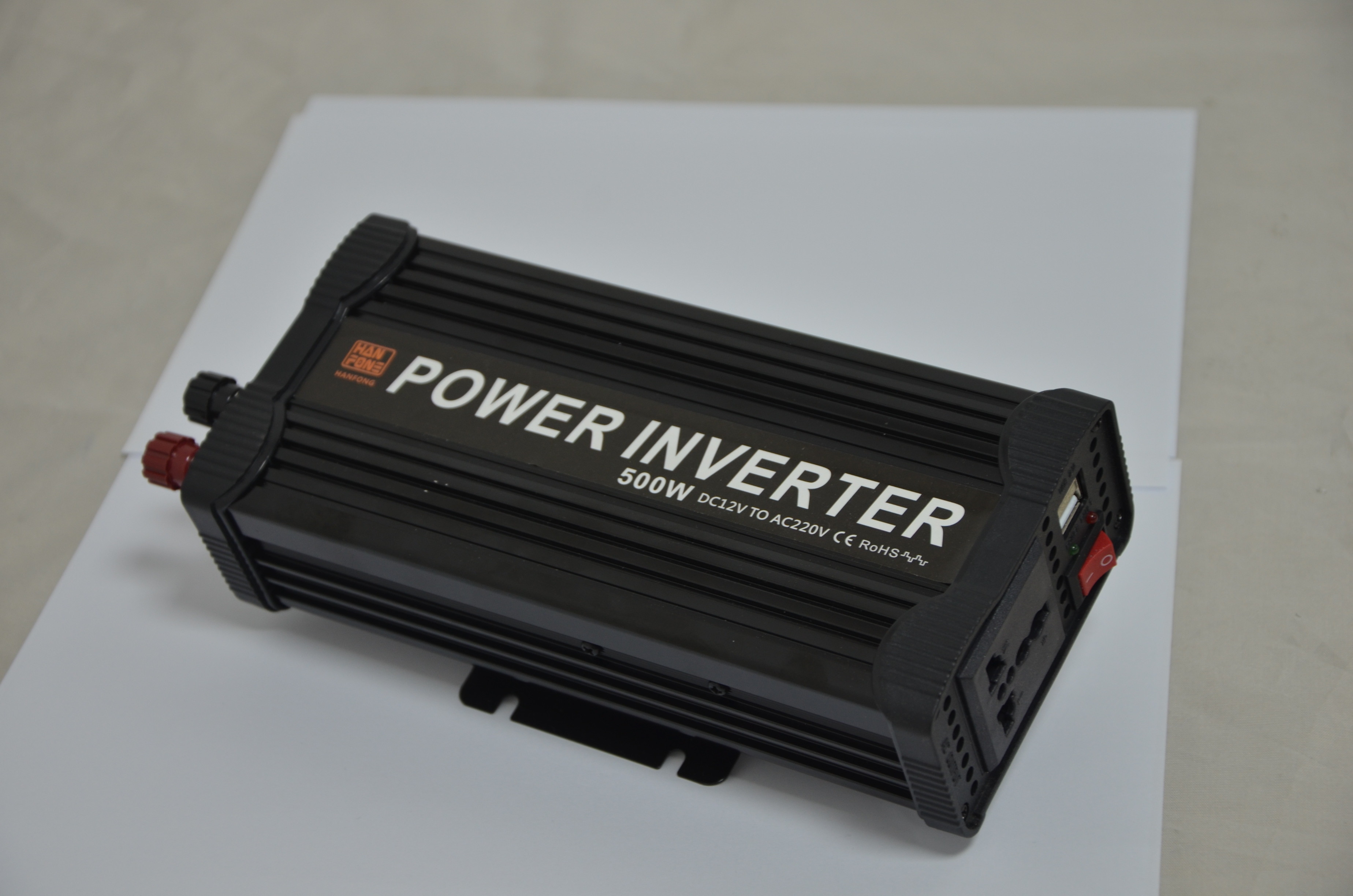

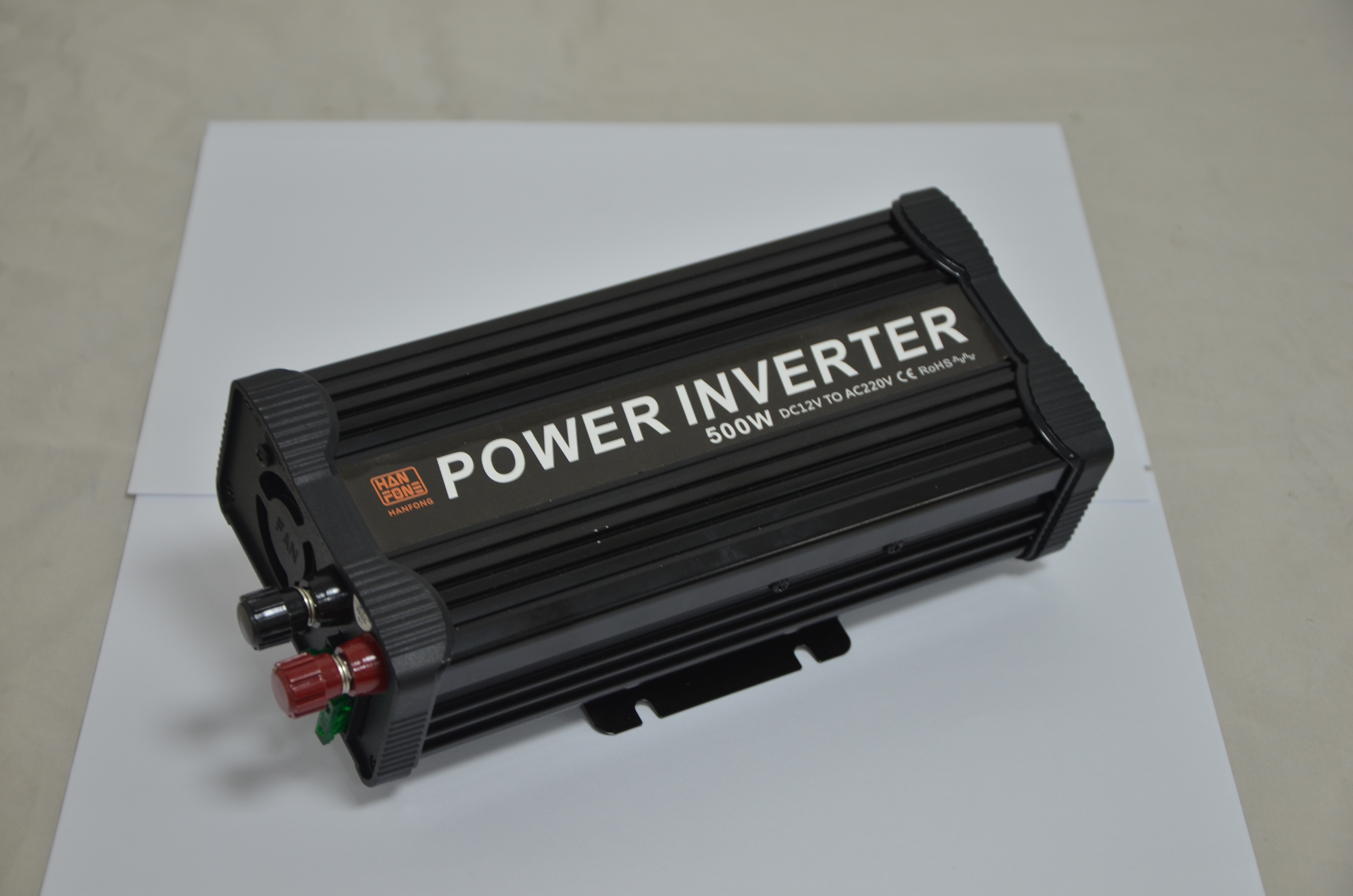

High efficiency Power inverters XA500W 2500W 12v 24v 48vdc 220v
110vac pure sine wave inverter with USB port winiversalXA Series Power Inverter
This power inverter is modified sine wave inverter which converts
DC power to AC power. Full power inverter with strong protections.
Its output voltage is always within 10% of rated voltage until it
shutdown for overload or other reasons.
1.Efficiency up to 90%, super surge capacity to start difficult
load
2.Strong adaptable and stable load
3.External fuse,easy to replace,restart safely
4.Smart chip, MCU single chip control
5.Five types of buzzing,easy to estimate which protection the
inverter belong to
6.Temperature control fan,Dual USB2.1A
7.Soft start output, can protect the appliance
8.Able to load energy-saving lamp
Applications:
Camera, fan, hair dryer, electric light, electric kettle, electric
shaver, TV set, CD player, mobile phone, notebook, portable device,
in-vehicle and etc.
Specifications:
| XA500 | XB500 | XC500 |
| DC 12V | DC 24V | DC 48V |
| DC10V-15.5V | DC20-30V | DC40-60V |
| 41.7A | 21A | 11A |
| >85% | ||
| 500W | ||
| 1000W | ||
| AC 100V-120V/210-240V | ||
| 50Hz-60Hz | ||
| 2.3A | ||
| Modified Sine Wave | ||
| ≥70℃ | ||
| 0℃～40℃ | ||
| Temperature Controlled Fan | ||
| Yes | ||
| 30A*2 | 15A*2 | 7.5A*2 |
| 10±1V | 20±1 | 40±1 |
| 15±1V | 30±1 | 60±1 |
| Under Voltage/Over Voltage:LED Red Light,Automatic Recovery | ||
| Overload:LED Red Light,Automatic Recovery First Time,Over Load Twice Continuously Need to Recovery Manually | ||
| Over temperature:LED Red Light,Manually Recovery | ||
| Short Circuit:LED Red Light,Manually Recovery | ||
| Input Reverse:Fuse Blown | ||
| 0.73kg | ||
| 0.96kg | ||
| 24*10.7*6cm | ||
| 31*11.5*7cm | ||
| 64.5*38*25.2cm 20 piece/carton | ||
|
|
