Homage Inverter 1000W Modified Sine Wave Inverters With lead-acid cell 12v 200Ah AS solar system inverter CE

GuangZhou HanFong New Energy Technology Co., Ltd.
Contact Now
    Buy cheap Homage Inverter 1000W Modified Sine Wave Inverters With lead-acid cell 12v 200Ah AS solar system inverter CE from wholesalers

    Buy cheap Homage Inverter 1000W Modified Sine Wave Inverters With lead-acid cell 12v 200Ah AS solar system inverter CE from wholesalers
    • Buy cheap Homage Inverter 1000W Modified Sine Wave Inverters With lead-acid cell 12v 200Ah AS solar system inverter CE from wholesalers
    • Buy cheap Homage Inverter 1000W Modified Sine Wave Inverters With lead-acid cell 12v 200Ah AS solar system inverter CE from wholesalers
    • Buy cheap Homage Inverter 1000W Modified Sine Wave Inverters With lead-acid cell 12v 200Ah AS solar system inverter CE from wholesalers
    • Buy cheap Homage Inverter 1000W Modified Sine Wave Inverters With lead-acid cell 12v 200Ah AS solar system inverter CE from wholesalers

    Homage Inverter 1000W Modified Sine Wave Inverters With lead-acid cell 12v 200Ah AS solar system inverter CE

    Ask Lasest Price
    Brand Name : Hanfong
    Model Number : THCA1500
    Certification : ISO1900 CE ROHS
    Price : $51.8 / PCS
    Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000PCS / week
    Delivery Time : 5 days
    • Product Details
    • Company Profile

    Homage Inverter 1000W Modified Sine Wave Inverters With lead-acid cell 12v 200Ah AS solar system inverter CE

    lnverter Solar Power System DC12V - AC 220V Modified Sine Wave Inverters 1500w Power inverter

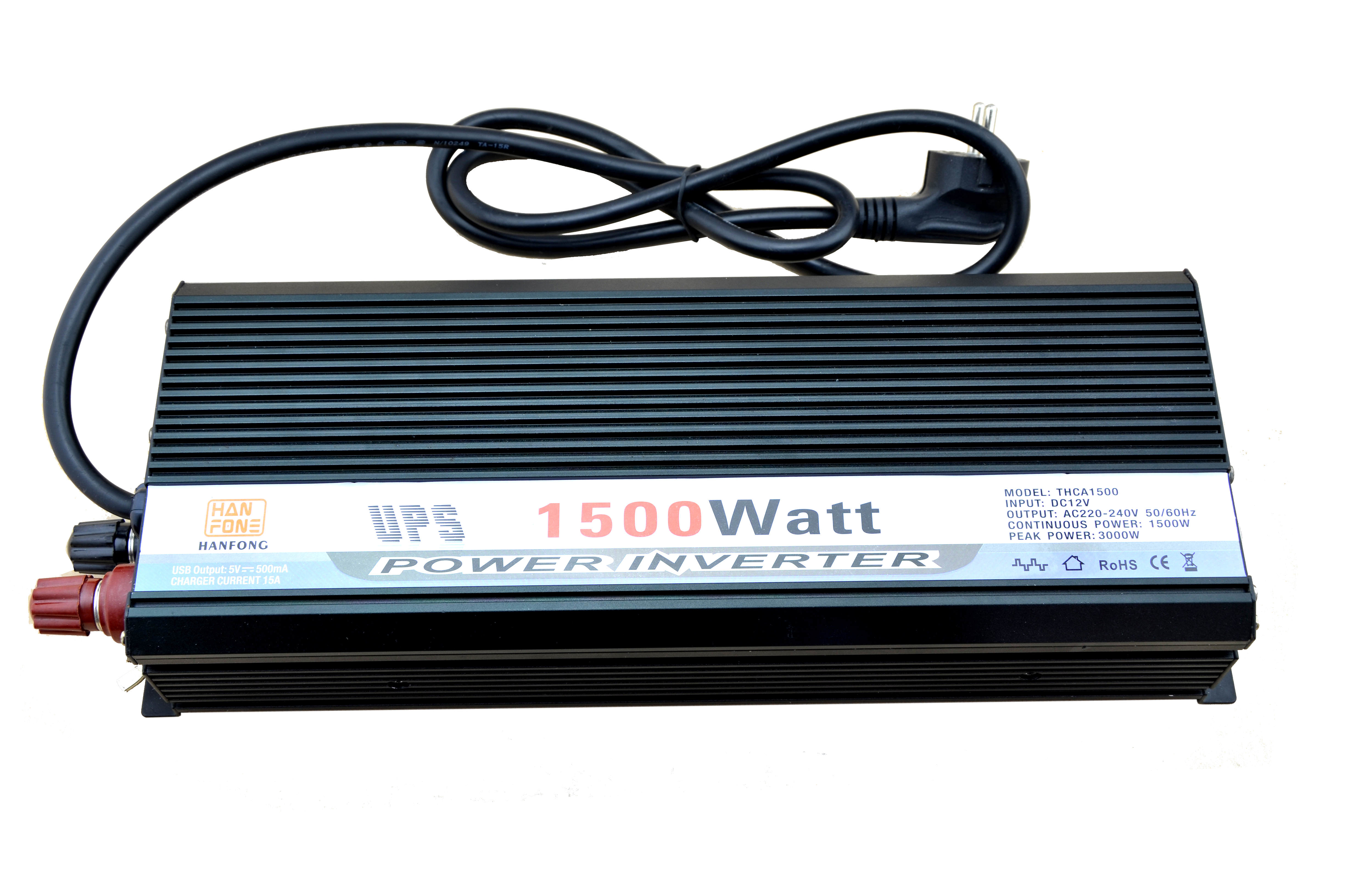

    THCA Series UPS Inverter with Charger


    A THC inverter is a combination of an inverter, battery charger and transfer switch into one complete system. When AC power is available, the inverter recharges the batteries. It also allows any surplus AC power to pass through and power downstream AC loads, such as a television set or microwave oven. When AC power is disconnected, the unit inverts DC battery power into AC electricity.


    Charging UPS inverter THCA series Advantage:


    • 1. have charger can charge for batery, constant voltage and stable output,strong impact resistance,under 50℃ at full load
    • 2. With 100% full power, efficiency reaching up to 90%
    • 3. Protection: low-voltage,over voltage,over load,over temperature.
    • 4. isolated circuit,strong impact resistance,constant voltage and stable output,low-interference
    • 5.Have charger can charge for battery, constant voltage and stable output, strong impact resistance, under 50℃ at full load;
    • 6.Protections: low-voltage, over voltage, over load, high temperature, earth leakage;
    • 7.Isolated circuit, strong impact resistance, constant voltage and stable output, low-interference;
    • 8.Advanced automatic constant circuit, prolong battery life;
    • 9.Perfect protection against battery under voltage, overload, short-circuit;
    • 10.Microprocessor control guarantees high reliability;

    Specification


    ModelTHCA1500THCB1500WTHCA1500
    Input VoltageDC 12VDC 24VDC 12V
    Working VoltageDC 9.5V-15.5VDC 20-30VDCDC 9.5-15.5VDC
    Input Current125A62.5A250A
    Conversion Efficiency>90%
    Continuous Power1500W
    Peak Power3000W
    Output VoltageAC110-120V/220-240V
    Output Current13.64A/6.82A
    Output Frequency50Hz-60Hz
    Charging current15A
    Wave FormModified Sine Wave
    Thermal Protection≥70℃
    Operating Temperature0℃~40℃
    CoolingBy Intelligent Fan
    Under Voltage9.5±1V20±1V9.5±1V
    Over Voltage15.5±1V30±1V15.5±1V
    ProtectionsUndervoltage: LED red light, buzzer alarm, restart recovery
    Overvoltage: LED red light, restart recovery
    Overload,high temperature: LED red light, restart recovery
    Reverse connect: Blown fuse
    Net Weight2600g
    Gross Weight3000g
    Size357*131*65mm
    Carton625*410*320mm 10Pieces/Carton


    Guangzhou Hanfong New Energy Technology Co., Ltd is a service and trade enterprise integrating R&D, production and sales; specializes in Solar Inverters, Solar Controllers, Inverter with built-in Controller, Solar Street Light with over 100 kinds of models; has self-owned brands such as “Cheng Luo”, “Gamatong”, “Winiversal” and “Hanfong”. Since its foundation, Hanfong has stuck to quality policy of “Quality first, Technology-based, Scientific management and rigorous control”, strictly implement manufacture management system, create a favorable manufacture environment for promoting production and business.
