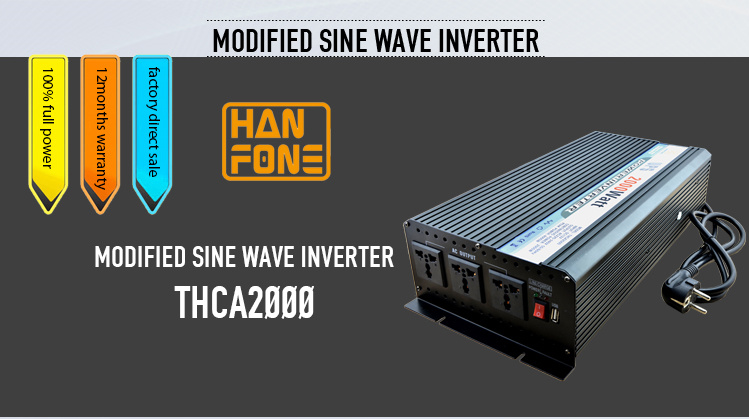

    Modified Sine Wave Inverters 2000W solar inverter With lead-acid cell 12v 200Ah AS solar power system home CE

    Ask Lasest Price
    Brand Name : Hanfong
    Model Number : THCA2000
    Certification : ISO1900 CE ROHS
    Price : $93.8 / PCS
    Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000PCS / week
    Delivery Time : 5 days
    • Product Details
    • Company Profile

    Modified Sine Wave Inverters 2000W solar inverter With lead-acid cell 12v 200Ah AS solar power system home CE

    Modified Sine Wave Inverters BY lnverter Solar Power System DC12V - AC 220V 2000w Power inverter


    THCA Series UPS Inverter with Charger

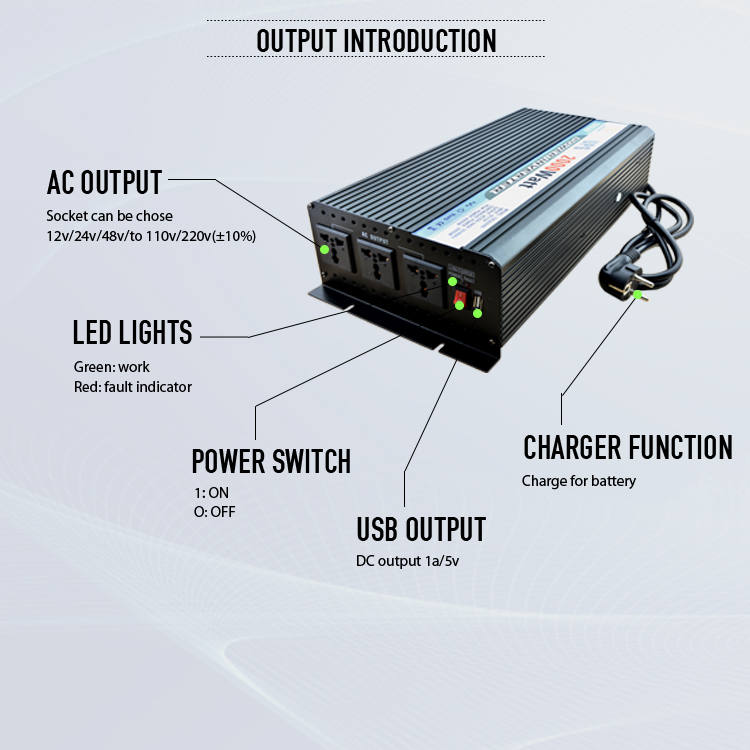

    A THC inverter is a combination of an inverter, battery charger and transfer switch into one complete system. When AC power is available, the inverter recharges the batteries. It also allows any surplus AC power to pass through and power downstream AC loads, such as a television set or microwave oven. When AC power is disconnected, the unit inverts DC battery power into AC electricity.


    Features:


    1. Have charger can charge for battery, constant voltage and stable output, strong impact resistance, under 50℃ at full load;
    2. Protections: low-voltage, over voltage, over load, high temperature, earth leakage;
    3. Isolated circuit, strong impact resistance, constant voltage and stable output, low-interference;
    4. Advanced automatic constant circuit, prolong battery life;
    5. Perfect protection against battery under voltage, overload, short-circuit;
    6. Microprocessor control guarantees high reliability;
    7. Can work with inductive load such as air conditioner, motor door and so on;
    8. Having grounding devices to improve safety and excellent component to lower interference; inner fan is intelligent and will not work until the wattage reaches 1/3 of inverter;
    9. With 100% full power, efficiency reaching up to 90%;
    10. USB charging port +5VDC, 500mA;
    11. Isolated output, soft start;
    12. Battery low voltage alarm;
    13. Cooling fins and load controlled fan.
    14. Specification

    Specification


    ModelTHCA2000THCB2000WTHCA2000
    Input VoltageDC 12VDC 24VDC 12V
    Working VoltageDC 9.5V-15.5VDC 20-30VDCDC 9.5-15.5VDC
    Input Current166.67A83.33A333.52A
    Conversion Efficiency>90%
    Continuous Power2000W
    Peak Power4000W
    Output VoltageAC110-120V/220-240V
    Output Current18.18A/9.1A
    Output Frequency50Hz-60Hz
    Charging current20A
    Wave FormModified Sine Wave
    Thermal Protection≥70℃
    Operating Temperature0℃~40℃
    CoolingBy Intelligent Fan
    Under Voltage9.5±1V20±1V9.5±1V
    Over Voltage15.5±1V30±1V15.5±1V
    ProtectionsUndervoltage: LED red light, buzzer alarm, restart recovery
    Overvoltage: LED red light, restart recovery
    Overload,high temperature: LED red light, restart recovery
    Reverse connect: Blown fuse
    Net Weight5500g
    Gross Weight6400g
    Size423*200*100mm
    Carton510*485*550mm 4Pieces/Carton


    Guangzhou Hanfong New Energy Technology Co., Ltd is a service and trade enterprise integrating R&D, production and sales; specializes in Solar Inverters, Solar Controllers, Inverter with built-in Controller, Solar Street Light with over 100 kinds of models; has self-owned brands such as “Cheng Luo”, “Gamatong”, “Winiversal” and “Hanfong”. Since its foundation, Hanfong has stuck to quality policy of “Quality first, Technology-based, Scientific management and rigorous control”, strictly implement manufacture management system, create a favorable manufacture environment for promoting production and business.
