| Brand Name : | Hanfong |
| Model Number : | THCA1000 |
| Certification : | ISO1900 CE ROHS |
| Price : | $45.7 / PCS |
| Payment Terms : | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 2000PCS / week |
| Delivery Time : | 5 days |

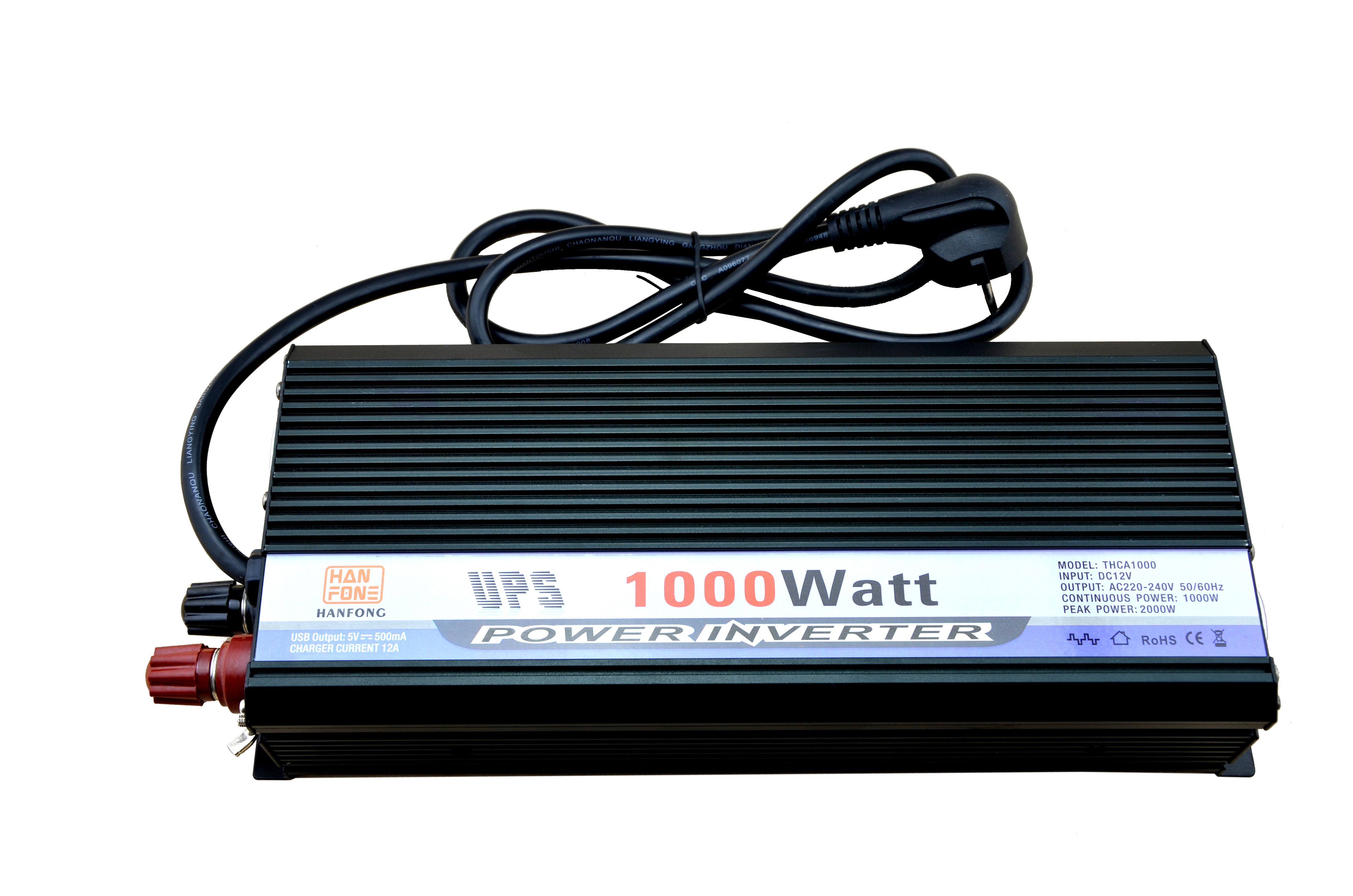

Solar Inverter DC12V - AC 220V Modified Sine Wave Inverters 1000w Power inverter
THCA Series UPS Inverter with Charger
A THC inverter is a combination of an inverter, battery charger and transfer switch into one complete system. When AC power is available, the inverter recharges the batteries. It also allows any surplus AC power to pass through and power downstream AC loads, such as a television set or microwave oven. When AC power is disconnected, the unit inverts DC battery power into AC electricity.
Charging UPS inverter THCA series Advantage:
1. have charger can charge for batery, constant voltage and stable
output,strong impact resistance,under 50℃ at full load
2. With 100% full power, efficiency reaching up to 90%
3. Protection: low-voltage,over voltage,over load,over temperature.
4. isolated circuit,strong impact resistance,constant voltage and
stable output,low-interference
5.Have charger can charge for battery, constant voltage and stable output, strong impact resistance, under 50℃ at full load;
6.Protections: low-voltage, over voltage, over load, high temperature, earth leakage;
7.Isolated circuit, strong impact resistance, constant voltage and stable output, low-interference;
8.Advanced automatic constant circuit, prolong battery life;
9.Perfect protection against battery under voltage, overload, short-circuit;
10.Microprocessor control guarantees high reliability;
Specification
| Model | THCA1000 | THCB1000 | WTHCA1000 |
| Input Voltage | DC 12V | DC 24V | DC 12V |
| Working Voltage | DC 9.5V-15.5V | DC 20-30VDC | DC 9.5-15.5VDC |
| Input Current | 83.3A | 41.7A | 166.6A |
| Conversion Efficiency | >90% | ||
| Continuous Power | 1000W | ||
| Peak Power | 2000W | ||
| Output Voltage | AC110-120V/220-240V | ||
| Output Current | 9.1A/4.5A | ||
| Output Frequency | 50Hz-60Hz | ||
| Charging current | 12A | ||
| Wave Form | Modified Sine Wave | ||
| Thermal Protection | ≥70℃ | ||
| Operating Temperature | 0℃～40℃ | ||
| Cooling | By Intelligent Fan | ||
| Under Voltage | 9.5±1V | 20±1V | 9.5±1V |
| Over Voltage | 15.5±1V | 30±1V | 15.5±1V |
| Protections | Undervoltage: LED red light, buzzer alarm, restart recovery | ||
| Overvoltage: LED red light, restart recovery | |||
| Overload,high temperature: LED red light, restart recovery | |||
| Reverse connect: Blown fuse | |||
| Net Weight | 2400g | ||
| Gross Weight | 2800g | ||
| Size | 327*131*65mm | ||
| Carton | 625*410*320mm 10Pieces/Carton | ||
The Modified sinewave inverter has some limitations. There are some of the appliances that may experience problems when running off Modified Sinewave inverters. Anything with an inductive or motor load, Such as driller, Sewing, Medical machine, are sometimes not working well with modified sino wave Power Inverter. But our Power inverter are supposed to work on car. A load that first rectifies the input (PC, Laptop, Phone Charger etc.), a modified Power Inverter is working perfectly.
|
|
